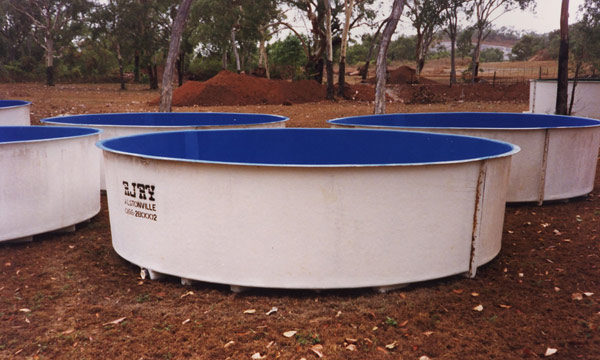

Flat Base Circular Tanks FRP for Aquaculture

450 – 260,000+ litres storage capacity

Flat base circular tanks are an economical option for open top storage or grow out application for most marine species. The flat base range of tanks are available with side or central drainage (central drainage requires a pipe channel in base). Larger tanks are supplied in two of more sections to allow for economical freight options. Custom design sumps and skimmer box assemblies are available on request. Available in a wide range of colours. Lids are available and priced on request.



SKU: FLATBASECIRCULARTANKS Category:

Models and Specifications:

Models and Specifications:

Models and Specifications:

CODE LITRES SPECIFICATIONS (Dimensions)
FB450 450 1.080 DIA X .650 HIGH
FB1000 1000 1.400 DIA X .900 HIGH
FB1500 1500 1.700 DIA X .760 HIGH
FB1750 1750 1.700 DIA X 1.000 HIGH
FB2000 2000 1.900 DIA X 1.000 HIGH
FB2500A 2500 2.520 DIA X .630 HIGH
FB2500B 2500 2.050 DIA X 1.000 HIGH
FB5000 5000 2.600 DIA X 1.200 HIGH
FB10000 10000 3.500 DIA X 1.100 HIGH
FB12600 12600 4.150 DIA X 1.000 HIGH
FB 19000 19000 4.600 DIA X 1.200 HIGH
FB23000 23000 4.900DIA X 1.200 HIGH
FB32000 32000 5.200 DIA X 1400 HIGH
FB100000 100000 8.300 DIA X 2.220 HIGH
FB210000 210000 10.000 DIA X 2.750 HIGH
FB260000 260000 11.000 DIA X 2.750 HIGH
